Rhino Grizzly YFM660 Kibblewhite Head Studs Bolt Aftermarket Heavy Duty Stud Kit

80-82600,80-82650 90105-09648-00,90105-10650-00,90105-10649-00,91317-06115-00,91317-06130-00,91317-06130-00,91317-06025-00, 91317-06040-00,91317-06040-00,91317-06055-00,90109-063E9-00,2G-TICYLHD,2G-660-TIHD

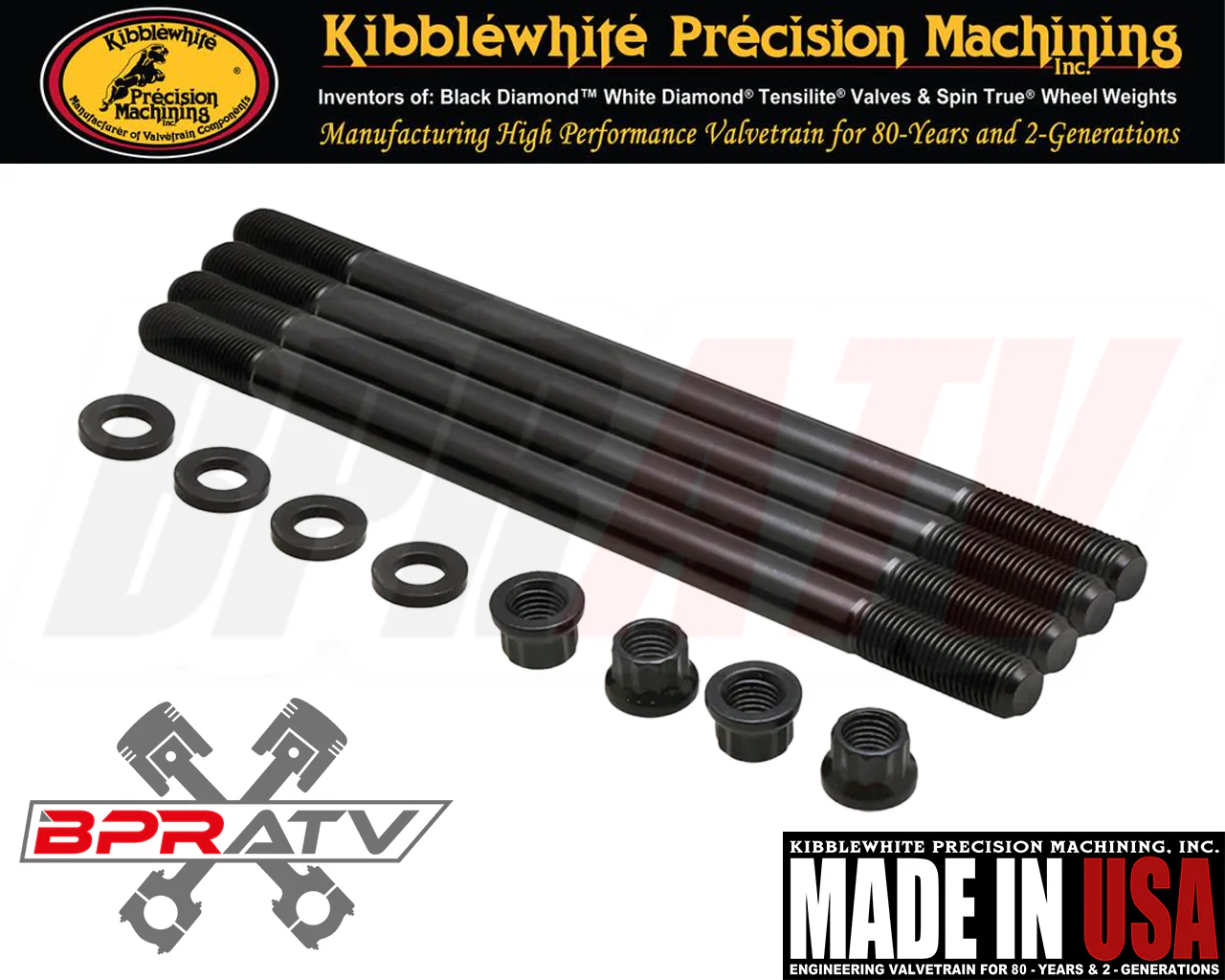

Brand New Kibblewhite Extreme Heavy Duty Cylinder Head Stud Kit

Yamaha® Grizzly™ 660 2002-2008

Yamaha® Raptor™ 660 2001-2005

Yamaha® Rhino™ 660 2004-2007

• Nuts are machined from billet high-tensile steel and heat-treated

• Studs are heat-treated 180,000 PSI aircraft alloy steel

• Both nut and stud have rolled threads for the strongest possible threads

• Both nut and stud are black oxide treated for enhanced corrosion resistance

KPMI® Cylinder Head Studs are made from 180,000 psi yield strength, fine grain, heat treated, aircraft grade alloy steel. When you want a stud that meets proof-stress and maximizes clamping force, look no further. KPMI® “rolls” the threads, heat treats, and then centerless grind the entire body of the stud. Rolling the threads creates the toughest and strongest thread possible and centerless grinding removes notch sensitivity. The final process for all KPMI® Studs is to encase the entire stud with a premium corrosion-resistant treatment of Black Oxide. Congratulations on purchasing a stud that meets and exceeds your stock-replacement of high-performance needs!

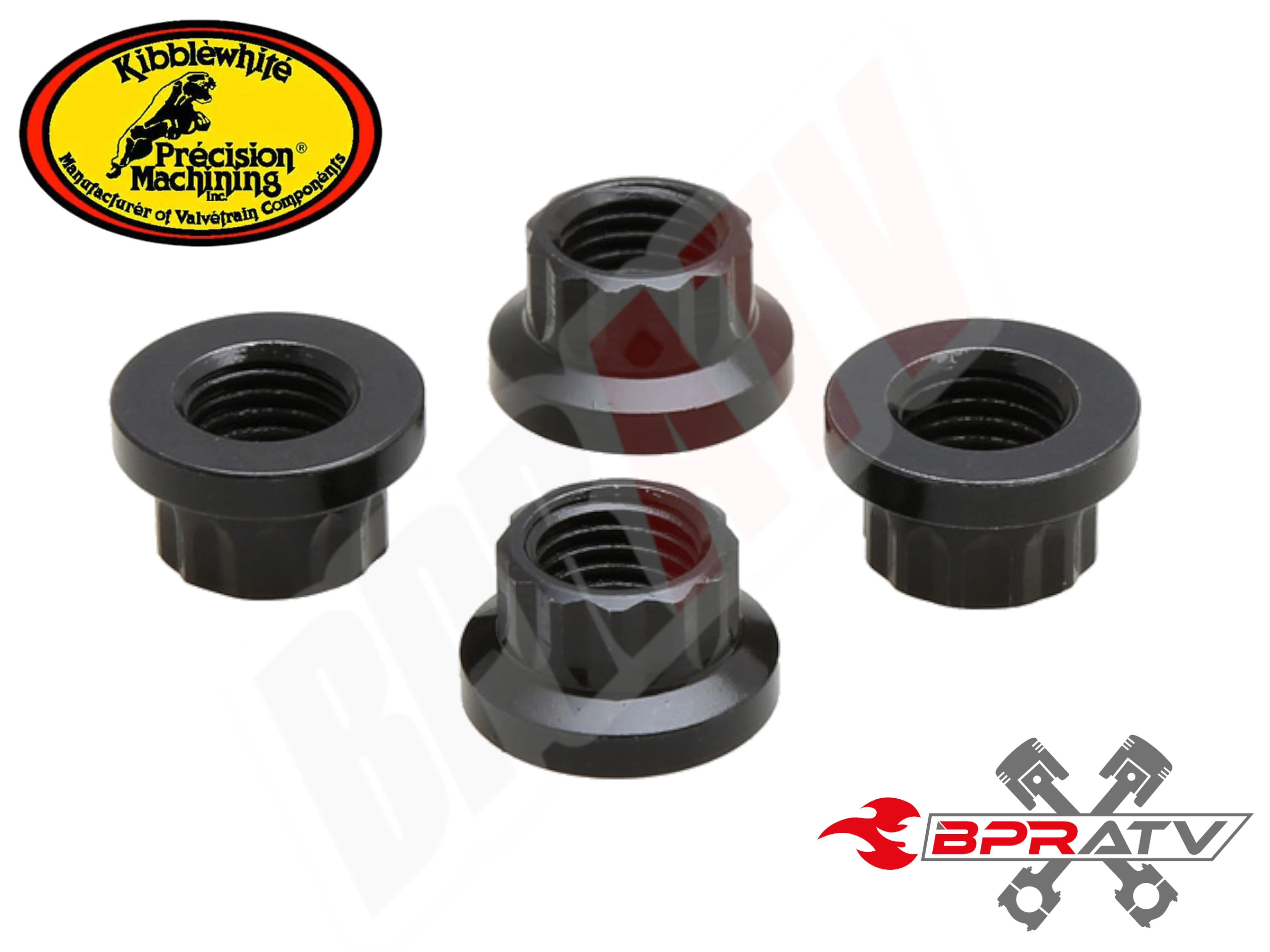

KPMI® nuts are single-point machined from high tensile strength Aircraft Alloy Steel. During the machining process, close tolerances and smooth surface finishes are maintained. Two critical factors for achieving correct fit and torque. After machining, the nuts are heat-treated to a specific depth. This creates hard, wear-resistant working surfaces while retaining a ductile core to prevent cracking under load. The premium black oxide treatment provides excellent corrosion resistance and appearance.

MADE IN USA
